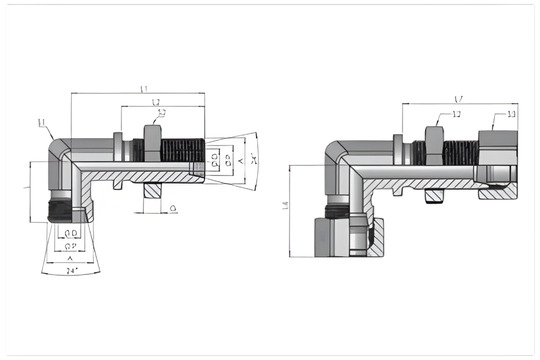

WSV-Bulkhead Elbow 24° Cone end

WSV-Bulkhead Elbow 24° Cone end

L SERIES

Tube O.D. A THREAD S1 Hex S2 Hex S3 Hex L L1 L2 ØD DRILL ØP G L6 L7 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g 12.00 17.00 14.00 20.50 48.00 34.00 4.00 6.00 5.00 27.00 42.00 XWSV06L WSV06L 330 330
8 M14X1.5-6g 12.00 19.00 17.00 21.00 51.00 34.00 6.00 8.00 5.50 29.00 42.00 XWSV08L WSV08L 330 330
10 M16X1.5-6g 14.00 22.00 19.00 25.00 53.00 35.00 8.00 10.00 6.00 30.00 43.00 XWSV10L WSV10L 330 330
12 M18X1.5-6g 17.00 24.00 22.00 26.50 56.00 36.00 10.00 12.00 7.00 32.00 44.00 XWSV12L WSV12L 330 330
15 M22X1.5-6g 24.00 30.00 27.00 28.00 61.00 38.00 12.00 15.00 8.00 36.00 46.00 XWSV15L WSV15L 330 330
18 M26X1.5-6g 24.00 36.00 32.00 31.00 64.00 40.00 15.00 18.00 8.00 40.00 49.00 XWSV18L WSV18L 330 330
22 M30X2.0-6g 27.00 41.00 36.00 35.00 72.00 42.00 19.00 22.00 10.00 44.00 51.00 XWSV22L WSV22L 160 160
28 M36X2.0-6g 36.00 46.00 41.00 38.00 77.00 43.00 24.00 28.00 12.00 47.00 52.00 XWSV28L WSV28L 160 160
35 M45X2.0-6g 41.00 55.00 50.00 42.00 86.00 47.00 30.00 35.00 11.00 56.00 58.00 XWSV35L WSV35L 160 160
42 M52X2.0-6g 50.00 65.00 60.00 51.00 90.00 47.00 36.00 42.00 14.00 63.00 59.00 XWSV42L WSV42L 160 160

S SERIES

Tube O.D. A THREAD S1 Hex S2 Hex S3 Hex L L1 L2 ØD DRILL ØP G L6 L7 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g 12.00 19.00 17.00 23.00 53.00 36.00 4.00 6.00 5.50 31.00 44.00 XWSV06S WSV06S 630 630
8 M16X1.5-6g 14.00 22.00 19.00 24.00 54.00 36.00 5.00 8.00 6.00 32.00 44.00 XWSV08S WSV08S 630 630
10 M18X1.5-6g 17.00 24.00 22.00 25.00 57.00 37.00 7.00 10.00 7.00 34.00 46.00 XWSV10S WSV10S 630 630
12 M20X1.5-6g 17.00 27.00 24.00 29.00 59.00 38.00 8.00 12.00 7.00 38.00 47.00 XWSV12S WSV12S 630 630
14 M22X1.5-6g 19.00 30.00 27.00 30.00 63.00 40.00 10.00 14.00 8.00 40.00 50.00 XWSV14S WSV14S 630 630
16 M24X1.5-6g 24.00 32.00 30.00 33.00 64.00 40.00 12.00 16.00 10.00 43.00 50.00 XWSV16S WSV16S 410 410
20 M30X2.0-6g 27.00 41.00 36.00 37.00 74.00 44.00 16.00 20.00 10.00 48.00 55.00 XWSV20S WSV20S 410 410
25 M36X2.0-6g 36.00 46.00 46.00 42.00 81.00 47.00 20.00 25.00 12.00 54.00 59.00 XWSV25S WSV25S 410 410
30 M42X2.0-6g 41.00 50.00 50.00 49.00 90.00 51.00 25.00 30.00 11.00 62.00 64.00 XWSV30S WSV30S 410 410
38 M52X2.0-6g 50.00 65.00 60.00 57.00 96.00 53.00 32.00 38.00 14.00 72.00 68.00 XWSV38S WSV38S 320 320
