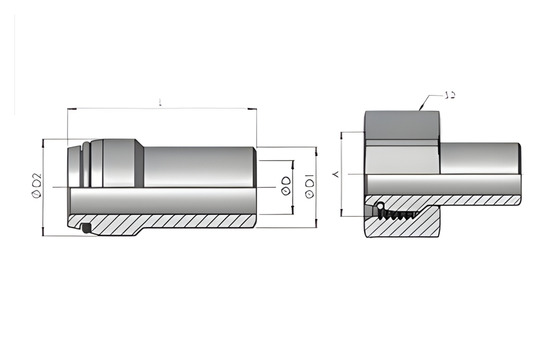

WN-Weld nipple

WN-Weld nipple

L SERIES

Tube O.D. ØD2 L LENGTH ØD1 ØD A THREAD S2 Hex Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 9.20 31.50 6.00 3.00 M12X1.5-6H 14.00 XWN06L WN06L 528 539
8 11.20 31.50 8.00 5.00 M14X1.5-6H 17.00 XWN08L WN08L 414 424
10 14.00 32.50 10.00 7.00 M16X1.5-6H 19.00 XWN10L WN10L 358 349
12 16.00 32.50 12.00 8.00 M18X1.5-6H 22.00 XWN12L WN12L 393 383
15 18.20 34.50 15.00 10.00 M22X1.5-6H 27.00 XWN15L WN15L 315 315
18 21.50 36.50 18.00 13.00 M26X1.5-6H 32.00 XWN18L WN18L 315 315
22 25.70 38.00 22.00 17.00 M30X2.0-6H 36.00 XWN22L WN22L 160 160
28 31.50 42.50 28.00 23.00 M36X2.0-6H 41.00 XWN28L WN28L 160 160
35 40.00 49.50 35.00 29.00 M45X2.0-6H 50.00 XWN35L WN35L 160 160
42 47.50 49.00 42.00 36.00 M52X2.0-6H 60.00 XWN42L WN42L 160 160

S SERIES

Tube O.D. ØD2 L LENGTH ØD1 ØD A THREAD S2 Hex Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 9.90 31.50 6.00 3.00 M14X1.5-6H 17.00 XWN06S WN06S 528 539
8 11.90 31.50 8.00 5.00 M16X1.5-6H 19.00 XWN08S WN08S 414 424
10 14.00 32.50 10.00 7.00 M18X1.5-6H 22.00 XWN10S WN10S 358 349
12 16.30 33.50 12.00 8.00 M20X1.5-6H 24.00 XWN12S WN12S 393 383
14 17.00 39.50 14.00 10.00 M22X1.5-6H 27.00 XWN14S WN14S 343 334
16 19.50 38.00 16.00 11.00 M24X1.5-6H 30.00 XWN16S WN16S 372 362
20 24.00 44.00 20.00 14.00 M30X2.0-6H 36.00 XWN20S WN20S 358 349
25 29.00 49.00 25.00 17.00 M36X2.0-6H 46.00 XWN25S WN25S 379 369
30 35.00 52.00 30.00 22.00 M42X2.0-6H 50.00 XWN30S WN30S 323 314
38 43.00 56.50 38.00 28.00 M52X2.0-6H 60.00 XWN38S WN38S 315 315
