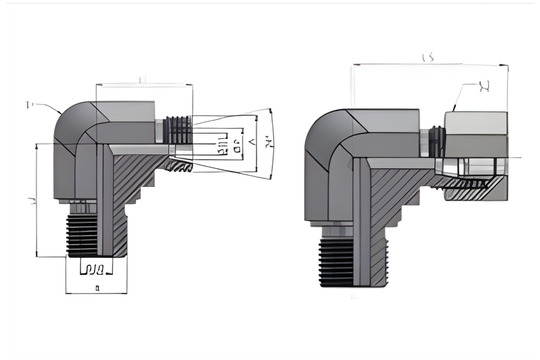

WE-R Male stud elbow 24° cone end
L SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L1 |
L2 |
ØD1 DRILL |
ØD2 DRILL |
ØP |
L5 |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 22 |
M30X2.0-6g |
G3/4"-14-BSPP |
27.00 |
36.00 |
35.00 |
42.00 |
18.00 |
18.00 |
22.00 |
44.00 |
XWE22LR |
WE22LR |
160 |
160 |
| 28 |
M36X2.0-6g |
G1"-11-BSPP-A |
36.00 |
41.00 |
38.00 |
48.00 |
23.00 |
23.00 |
28.00 |
47.00 |
XWE28LR |
WE28LR |
160 |
160 |
| 35 |
M45X2.0-6g |
G1-1/4"-11-BSPP-A |
41.00 |
50.00 |
45.00 |
54.00 |
30.00 |
30.00 |
35.00 |
56.00 |
XWE35LR |
WE35LR |
160 |
160 |
| 42 |
M52X2.0-6g |
G1-1/2"-11-BSPP-A |
50.00 |
60.00 |
51.00 |
61.00 |
36.00 |
36.00 |
42.00 |
63.00 |
XWE42LR |
WE42LR |
160 |
160 |
S SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L1 |
L2 |
ØD1 DRILL |
ØD2 DRILL |
ØP |
L5 |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 20 |
M30X2.0-6g |
G3/4"-14-BSPP |
27.00 |
36.00 |
37.00 |
42.00 |
16.00 |
16.00 |
20.00 |
48.00 |
XWE20SR |
WE20SR |
400 |
410 |
| 25 |
M36X2.0-6g |
G1"-11-BSPP-A |
36.00 |
46.00 |
42.00 |
48.00 |
20.00 |
20.00 |
25.00 |
54.00 |
XWE25SR |
WE25SR |
250 |
250 |
| 30 |
M42X2.0-6g |
G1-1/4"-11-BSPP-A |
41.00 |
50.00 |
49.00 |
54.00 |
25.00 |
25.00 |
30.00 |
62.00 |
XWE30SR |
WE30SR |
160 |
160 |
| 38 |
M52X2.0-6g |
G1-1/2"-11-BSPP-A |
50.00 |
60.00 |
57.00 |
61.00 |
32.00 |
32.00 |
38.00 |
72.00 |
XWE38SR |
WE38SR |
160 |
160 |
