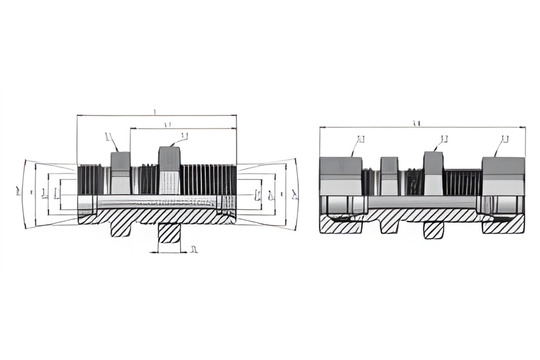

SV-Bulkhead Union 24° Cone end

SV-Bulkhead Union 24° Cone end

L SERIES

Tube O.D. A THREAD S1 Hex S2 Hex S3 Hex L L1 ØD DRILL ØP G L6 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g 17.00 17.00 14.00 48.00 34.00 4.00 6.00 5.00 64.00 XSV06L SV06L 500 330
8 M14X1.5-6g 19.00 19.00 17.00 49.00 34.00 6.00 8.00 5.50 65.00 XSV08L SV08L 500 330
10 M16X1.5-6g 22.00 22.00 19.00 52.00 35.00 8.00 10.00 6.00 68.00 XSV10L SV10L 500 330
12 M18X1.5-6g 24.00 24.00 22.00 53.00 36.00 10.00 12.00 7.00 69.00 XSV12L SV12L 400 330
15 M22X1.5-6g 27.00 30.00 27.00 57.00 38.00 12.00 15.00 8.00 73.00 XSV15L SV15L 400 330
18 M26X1.5-6g 32.00 36.00 32.00 61.00 40.00 15.00 18.00 8.00 79.00 XSV18L SV18L 400 330
22 M30X2.0-6g 36.00 41.00 36.00 66.00 42.00 19.00 22.00 10.00 84.00 XSV22L SV22L 250 160
28 M36X2.0-6g 41.00 46.00 41.00 69.00 43.00 24.00 28.00 12.00 107.00 XSV28L SV28L 250 160
35 M45X2.0-6g 50.00 55.00 50.00 76.00 47.00 30.00 35.00 11.00 98.00 XSV35L SV35L 250 160
42 M52X2.0-6g 60.00 65.00 60.00 77.00 47.00 36.00 42.00 14.00 101.00 XSV42L SV42L 250 160

S SERIES

Tube O.D. A THREAD S1 Hex S2 Hex S3 Hex L L1 ØD DRILL ØP G L6 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g 19.00 19.00 17.00 55.00 36.00 4.00 6.00 5.50 71.00 XSV06S SV06S 800 630
8 M16X1.5-6g 22.00 22.00 19.00 56.00 36.00 5.00 8.00 6.00 72.00 XSV08S SV08S 800 630
10 M18X1.5-6g 24.00 24.00 22.00 59.00 37.00 7.00 10.00 7.00 77.00 XSV10S SV10S 800 630
12 M20X1.5-6g 27.00 27.00 24.00 60.00 38.00 8.00 12.00 7.00 78.00 XSV12S SV12S 630 630
14 M22X1.5-6g 30.00 30.00 27.00 64.00 40.00 10.00 14.00 8.00 85.00 XSV14S SV14S 630 630
16 M24X1.5-6g 32.00 32.00 30.00 65.00 40.00 12.00 16.00 10.00 85.00 XSV16S SV16S 630 410
20 M30X2.0-6g 41.00 41.00 36.00 72.00 44.00 16.00 20.00 10.00 94.00 XSV20S SV20S 420 410
25 M36X2.0-6g 46.00 46.00 46.00 79.00 47.00 20.00 25.00 12.00 103.00 XSV25S SV25S 420 410
30 M42X2.0-6g 50.00 50.00 50.00 86.00 51.00 25.00 30.00 11.00 112.00 XSV30S SV30S 420 410
38 M52X2.0-6g 65.00 65.00 60.00 91.00 53.00 32.00 38.00 14.00 121.00 XSV38S SV38S 420 320
