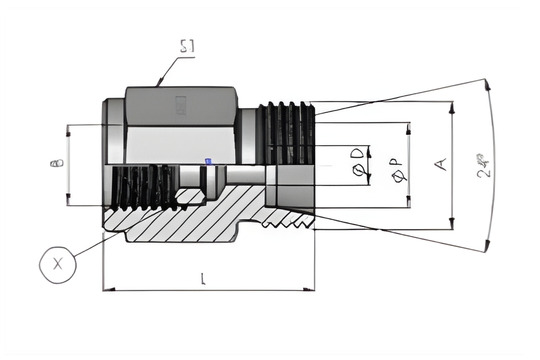

MAV-Pressure gauge connector & Female BSPP thread
L SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD DRILL |
ØP |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 6 |
M12X1.5-6g |
1/4"BSPP |
19.00 |
14.00 |
29.00 |
2.50 |
6.00 |
XMAV06LR |
MAV06LR |
315 |
315 |
| 8 |
M14X1.5-6g |
1/4"BSPP |
19.00 |
17.00 |
29.00 |
5.50 |
8.00 |
XMAV08LR |
MAV08LR |
315 |
315 |
| 10 |
M16X1.5-6g |
1/4"BSPP |
19.00 |
19.00 |
30.00 |
5.50 |
10.00 |
XMAV10LR |
MAV10LR |
315 |
315 |
| 12 |
M18X1.5-6g |
1/4"BSPP |
19.00 |
22.00 |
30.00 |
5.50 |
12.00 |
XMAV12LR |
MAV12LR |
315 |
315 |
S SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD DRILL |
ØP |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 6 |
M14X1.5-6g |
1/2"BSP |
27.00 |
17.00 |
38.00 |
3.50 |
6.00 |
XMAV06SR |
MAV06SR |
630 |
630 |
| 8 |
M16X1.5-6g |
1/2"BSP |
27.00 |
19.00 |
38.00 |
3.50 |
8.00 |
XMAV08SR |
MAV08SR |
630 |
630 |
| 10 |
M18X1.5-6g |
1/2"BSP |
27.00 |
22.00 |
38.00 |
7.00 |
10.00 |
XMAV10SR |
MAV10SR |
630 |
630 |
| 12 |
M20X1.5-6g |
2/2"BSP |
27.00 |
24.00 |
38.00 |
7.00 |
12.00 |
XMAV12SR |
MAV12SR |
630 |
630 |
