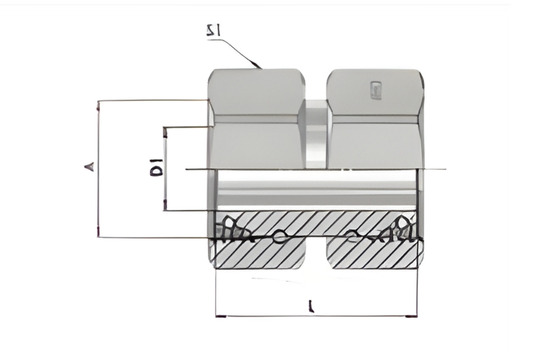

GZ-Swivel union 24° DKO swivel

GZ-Swivel union 24° DKO swivel

L SERIES

Tube O.D. A THREAD S1 Hex L ØD1 DRILL Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g 14.00 32.00 2.50 GZ06L 500 330
8 M14X1.5-6g 17.00 32.00 4.00 GZ08L 500 330
10 M16X1.5-6g 19.00 36.00 6.00 GZ10L 500 330
12 M18X1.5-6g 22.00 33.00 8.00 GZ12L 400 330
15 M22X1.5-6g 27.00 38.00 10.00 GZ15L 400 330
18 M26X1.5-6g 32.00 45.00 13.00 GZ18L 400 330
22 M30X2.0-6g 36.00 42.00 17.00 GZ22L 250 160
28 M36X2.0-6g 41.00 47.00 22.00 GZ28L 250 160
35 M45X2.0-6g 50.00 53.00 28.00 GZ35L 250 160
42 M52X2.0-6g 60.00 52.00 34.00 GZ35L 250 160

S SERIES

Tube O.D. A THREAD S1 Hex L ØD1 DRILL Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g 17.00 32.00 2.50 GZ06S 800 630
8 M16X1.5-6g 19.00 33.00 4.00 GZ08S 800 630
10 M18X1.5-6g 22.00 33.00 6.00 GZ10S 800 630
12 M20X1.5-6g 24.00 36.00 8.00 GZ12S 630 630
16 M24X1.5-6g 30.00 46.00 11.00 GZ16S 630 630
20 M30X2.0-6g 36.00 55.00 14.00 GZ20S 420 410
25 M36X2.0-6g 46.00 58.00 18.00 GZ25S 420 410
30 M42X2.0-6g 50.00 62.00 23.00 GZ30S 420 410
38 M52X2.0-6g 60.00 67.00 30.00 GZ38S 420 320
42 M52X2.0-6g 60.00 52.00 34.00 GZ35L 250 160
