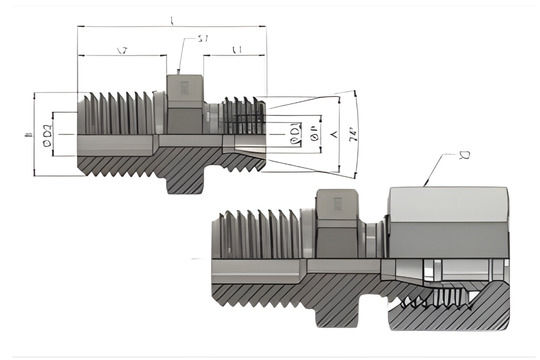

GE-NPT-Male stud connector Male NPT thread
L SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD1 DRILL |
ØD2 DRILL |
ØP |
L1 |
L2 |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 6 |
M12X1.5-6g |
1/8"-27NPT |
14.00 |
14.00 |
24.00 |
4.00 |
4.00 |
6.00 |
10.00 |
10.00 |
XGE06L-1/8"NPT |
GE06L-1/8"NPT |
315 |
330 |
| 6 |
M12X1.5-6g |
1/4"-18NPT |
17.00 |
14.00 |
29.00 |
4.00 |
4.00 |
4.00 |
10.00 |
14.30 |
XGE06L-1/4"NPT |
GE06L-1/4"NPT |
315 |
330 |
| 8 |
M14X1.5-6g |
1/8"-27NPT |
14.00 |
17.00 |
17.00 |
4.00 |
4.00 |
8.00 |
10.00 |
10.00 |
XGE08L-1/8"NPT |
GE08L-1/8"NPT |
315 |
330 |
| 8 |
M14X1.5-6g |
1/4"-18NPT |
17.00 |
17.00 |
29.30 |
6.00 |
6.00 |
8.00 |
10.00 |
14.30 |
XGE08L-1/4"NPT |
GE08L-1/4"NPT |
315 |
330 |
| 10 |
M16X1.5-6g |
1/8"-27NPT |
17.00 |
19.00 |
25.00 |
7.00 |
4.00 |
10.00 |
11.00 |
10.00 |
XGE10L-1/8"NPT |
GE10L-1/8"NPT |
315 |
330 |
| 10 |
M16X1.5-6g |
1/4"-18NPT |
17.00 |
19.00 |
31.10 |
7.00 |
7.00 |
10.00 |
11.00 |
15.10 |
XGE10L-1/4"NPT |
GE10L-1/4"NPT |
315 |
330 |
| 10 |
M16X1.5-6g |
3/8"-18NPT |
19.00 |
19.00 |
32.00 |
7.00 |
7.00 |
10.00 |
11.00 |
14.30 |
XGE10L-3/8"NPT |
GE10L-3/8"NPT |
315 |
330 |
| 12 |
M18X1.5-6g |
1/4"-18NPT |
19.00 |
22.00 |
32.10 |
6.00 |
6.00 |
12.00 |
11.00 |
15.10 |
XGE12L-1/4"NPT |
GE12L-1/4"NPT |
315 |
330 |
| 12 |
M18X1.5-6g |
3/8"-18NPT |
19.00 |
22.00 |
32.00 |
10.00 |
10.00 |
12.00 |
11.00 |
14.30 |
XGE12L-3/8"NPT |
GE12L-3/8"NPT |
315 |
330 |
| 12 |
M18X1.5-6g |
1/2"-14NPT |
22.00 |
22.00 |
37.00 |
10.00 |
10.00 |
12.00 |
11.00 |
19.30 |
XGE12L-1/2"NPT |
GE12L-1/2"NPT |
315 |
330 |
| 15 |
M22X1.5-6g |
3/8"-18NPT |
24.00 |
27.00 |
33.00 |
8.00 |
8.00 |
15.00 |
12.00 |
14.30 |
XGE15L-3/8"NPT |
GE15L-3/8"NPT |
315 |
330 |
| 15 |
M22X1.5-6g |
1/2"-14NPT |
24.00 |
27.00 |
38.00 |
12.00 |
12.00 |
15.00 |
12.00 |
19.50 |
XGE15L-1/2"NPT |
GE15L-1/2"NPT |
315 |
330 |
| 15 |
M22X1.5-6g |
3/4"-14NPT |
30.00 |
27.00 |
39.00 |
12.00 |
12.00 |
15.00 |
12.00 |
19.50 |
XGE15L-3/4"NPT |
GE15L-3/4"NPT |
315 |
330 |
| 18 |
M26X1.5-6g |
3/8"-18NPT |
27.00 |
32.00 |
34.00 |
8.00 |
8.00 |
18.00 |
12.00 |
14.50 |
XGE18L-3/8"NPT |
GE18L-3/8"NPT |
315 |
330 |
| 18 |
M26X1.5-6g |
1/2"-14NPT |
27.00 |
32.00 |
39.00 |
12.00 |
12.00 |
18.00 |
12.00 |
19.50 |
XGE18L-1/2"NPT |
GE18L-1/2"NPT |
315 |
330 |
| 18 |
M26X1.5-6g |
3/4"-14NPT |
30.00 |
32.00 |
39.00 |
15.00 |
15.00 |
18.00 |
12.00 |
19.50 |
XGE18L-3/4"NPT |
GE18L-3/4"NPT |
315 |
330 |
| 22 |
M30X2.0-6g |
3/8"-18NPT |
32.00 |
36.00 |
36.50 |
8.00 |
8.00 |
22.00 |
14.00 |
14.30 |
XGE22L-3/8"NPT |
GE22L-3/8"NPT |
160 |
160 |
| 22 |
M30X2.0-6g |
1/2"-14NPT |
32.00 |
36.00 |
40.00 |
18.00 |
11.00 |
22.00 |
14.00 |
19.00 |
XGE22L-1/2"NPT |
GE22L-1/2"NPT |
160 |
160 |
| 22 |
M30X2.0-6g |
3/4"-14NPT |
32.00 |
36.00 |
41.00 |
16.00 |
16.00 |
22.00 |
14.00 |
19.00 |
XGE22L-3/4"NPT |
GE22L-3/4"NPT |
160 |
160 |
| 28 |
M36X2.0-6g |
3/4"-14NPT |
41.00 |
41.00 |
42.00 |
19.00 |
19.00 |
28.00 |
14.00 |
19.50 |
XGE28L-3/4"NPT |
GE28L-3/4"NPT |
160 |
160 |
| 28 |
M36X2.0-6g |
1"-11.5NPT |
41.00 |
41.00 |
48.00 |
23.00 |
23.00 |
28.00 |
14.00 |
24.00 |
XGE28L-1"NPT |
GE28L-1"NPT |
160 |
160 |
| 35 |
M45X2.0-6g |
1"-11.5NPT |
46.00 |
50.00 |
50.00 |
22.00 |
22.00 |
35.00 |
16.00 |
24.50 |
XGE35L-1"NPT |
GE35L-1"NPT |
160 |
160 |
| 35 |
M45X2.0-6g |
1-1/4"-11.5NPT |
46.00 |
50.00 |
51.00 |
28.00 |
28.00 |
35.00 |
16.00 |
24.50 |
XGE35L-1-1/4"NPT |
GE35L-1-1/4"NPT |
160 |
160 |
| 42 |
M52X2.0-6g |
1-1/2"-11.5NPT |
55.00 |
60.00 |
53.00 |
36.00 |
36.00 |
42.00 |
49.00 |
26.00 |
XGE42L-1-1/2"NPT |
GE42L-1-1/2"NPT |
160 |
160 |
S SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD1 DRILL |
ØD2 DRILL |
ØP |
ØP |
L1 |
L2 |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 6 |
M14X1.5-6g |
1/8"-27NPT |
14.00 |
17.00 |
28.00 |
4.00 |
4.00 |
6.00 |
6.00 |
12.00 |
10.00 |
XGE06S-1/8"NPT |
GE06S-1/8"NPT |
630 |
630 |
| 6 |
M14X1.5-6g |
1/4"-18NPT |
17.00 |
17.00 |
30.00 |
4.00 |
4.00 |
6.00 |
6.00 |
12.00 |
12.00 |
XGE06S-1/4"NPT |
GE06S-1/4"NPT |
630 |
630 |
| 6 |
M14X1.5-6g |
3/8"-18NPT |
19.00 |
17.00 |
33.00 |
4.00 |
4.00 |
6.00 |
6.00 |
12.00 |
14.50 |
XGE06S-3/8"NPT |
GE06S-3/8"NPT |
630 |
630 |
| 6 |
M14X1.5-6g |
1/2"-14NPT |
22.00 |
17.00 |
42.00 |
4.00 |
4.00 |
6.00 |
6.00 |
13.00 |
19.50 |
XGE06S-1/2"NPT |
GE06S-1/2"NPT |
630 |
630 |
| 10 |
M18X1.5-6g |
1/4"-18NPT |
19.00 |
19.00 |
34.00 |
7.00 |
7.00 |
10.00 |
10.00 |
12.00 |
14.30 |
XGE10S-1/4"NPT |
GE10S-1/4"NPT |
630 |
630 |
| 10 |
M18X1.5-6g |
3/8"-18NPT |
19.00 |
19.00 |
33.00 |
7.00 |
7.00 |
10.00 |
10.00 |
12.00 |
14.00 |
XGE10S-3/8"NPT |
GE10S-3/8"NPT |
630 |
630 |
| 10 |
M18X1.5-6g |
1/2"-14NPT |
24.00 |
19.00 |
41.00 |
7.00 |
7.00 |
10.00 |
10.00 |
12.00 |
19.00 |
XGE10S-1/2"NPT |
GE10S-1/2"NPT |
630 |
630 |
| 12 |
M20X1.5-6g |
1/4"-18NPT |
22.00 |
24.00 |
37.00 |
5.00 |
5.00 |
12.00 |
|
12.00 |
14.50 |
XGE12S-1/4"NPT |
GE12S-1/4"NPT |
630 |
630 |
| 12 |
M20X1.5-6g |
3/8"-18NPT |
22.00 |
24.00 |
37.00 |
8.00 |
8.00 |
12.00 |
12.00 |
12.00 |
14.50 |
XGE12S-3/8"NPT |
GE12S-3/8"NPT |
630 |
630 |
| 12 |
M20X1.5-6g |
1/2"-14NPT |
22.00 |
24.00 |
42.00 |
8.00 |
8.00 |
12.00 |
12.00 |
12.00 |
19.50 |
XGE12S-1/2"NPT |
GE12S-1/2"NPT |
630 |
630 |
| 12 |
M20X1.5-6g |
3/4"-14NPT |
30.00 |
24.00 |
44.00 |
8.00 |
8.00 |
12.00 |
12.00 |
12.00 |
19.50 |
XGE12S-3/4"NPT |
GE12S-3/4"NPT |
630 |
630 |
| 16 |
M24X1.5-6g |
1/4"-18NPT |
27.00 |
30.00 |
38.50 |
12.00 |
7.00 |
16.00 |
16.00 |
14.00 |
14.30 |
XGE16S-1/4"NPT |
GE16S-1/4"NPT |
630 |
630 |
| 16 |
M24X1.5-6g |
3/8"-18NPT |
27.00 |
30.00 |
39.00 |
8.00 |
8.00 |
16.00 |
16.00 |
14.00 |
14.50 |
XGE16S-3/8"NPT |
GE16S-3/8"NPT |
630 |
630 |
| 16 |
M24X1.5-6g |
1/2"-14NPT |
27.00 |
30.00 |
43.00 |
12.00 |
12.00 |
16.00 |
16.00 |
14.00 |
19.00 |
XGE16S-1/2"NPT |
GE16S-1/2"NPT |
630 |
630 |
| 16 |
M24X1.5-6g |
3/4"-14NPT |
30.00 |
30.00 |
46.00 |
12.00 |
12.00 |
16.00 |
16.00 |
14.00 |
19.50 |
XGE16S-3/4"NPT |
GE16S-3/4"NPT |
630 |
630 |
| 20 |
M30X2.0-6g |
1/4"-18NPT |
32.00 |
36.00 |
43.00 |
16.00 |
16.00 |
20.00 |
20.00 |
16.00 |
14.50 |
XGE20S-1/4"NPT |
GE20S-1/4"NPT |
400 |
410 |
| 20 |
M30X2.0-6g |
1/2"-14NPT |
32.00 |
36.00 |
48.00 |
16.00 |
7.00 |
20.00 |
20.00 |
16.00 |
19.00 |
XGE20S-1/2"NPT |
GE20S-1/2"NPT |
400 |
410 |
| 25 |
M36X2.0-6g |
3/4"-14NPT |
41.00 |
46.00 |
52.00 |
16.00 |
16.00 |
25.00 |
25.00 |
18.00 |
19.50 |
XGE25S-3/4"NPT |
GE25S-3/4"NPT |
400 |
410 |
| 25 |
M36X2.0-6g |
1"-11.5NPT |
41.00 |
46.00 |
57.00 |
20.00 |
20.00 |
25.00 |
25.00 |
18.00 |
24.50 |
XGE25S-1"NPT |
GE25S-1"NPT |
400 |
410 |
| 25 |
M36X2.0-6g |
1-1/4"-11.5NPT |
46.00 |
46.00 |
58.00 |
20.00 |
20.00 |
25.00 |
25.00 |
18.00 |
25.00 |
XGE25S-1-1/4"NPT |
GE25S-1-1/4"NPT |
400 |
410 |
| 25 |
M36X2.0-6g |
1-1/2"-11.5NPT |
50.00 |
46.00 |
61.00 |
20.00 |
20.00 |
25.00 |
25.00 |
18.00 |
26.00 |
XGE25S-1-1/2"NPT |
GE25S-1-1/2"NPT |
400 |
410 |
| 30 |
M42X2.0-6g |
3/4"-14NPT |
46.00 |
50.00 |
54.00 |
16.00 |
16.00 |
30.00 |
30.00 |
20.00 |
19.50 |
XGE30S-3/4"NPT |
GE30S-3/4"NPT |
400 |
410 |
| 30 |
M42X2.0-6g |
1"-11.5NPT |
46.00 |
50.00 |
59.00 |
20.00 |
20.00 |
30.00 |
30.00 |
20.00 |
24.50 |
XGE30S-1"NPT |
GE30S-1"NPT |
400 |
410 |
| 30 |
M42X2.0-6g |
1-1/4"-11.5NPT |
46.00 |
50.00 |
60.00 |
25.00 |
25.00 |
30.00 |
30.00 |
20.00 |
25.00 |
XGE30S-1-1/4"NPT |
GE30S-1-1/4"NPT |
400 |
410 |
| 30 |
M42X2.0-6g |
1-1/2"-11.5NPT |
50.00 |
50.00 |
60.00 |
25.00 |
25.00 |
30.00 |
30.00 |
20.00 |
26.00 |
XGE30S-1-1/2"NPT |
GE30S-1-1/2"NPT |
400 |
410 |
| 38 |
M52X2.0-6g |
1"-11.5NPT |
55.00 |
60.00 |
64.00 |
22.00 |
22.00 |
38.00 |
38.00 |
22.00 |
24.50 |
XGE38S-1"NPT |
GE38S-1"NPT |
315 |
320 |
| 38 |
M52X2.0-6g |
1-1/4"-11.5NPT |
55.00 |
60.00 |
65.00 |
25.00 |
25.00 |
38.00 |
38.00 |
22.00 |
25.00 |
XGE38S-1-1/4"NPT |
GE38S-1-1/4"NPT |
315 |
320 |
| 38 |
M52X2.0-6g |
1-1/2"-11.5NPT |
55.00 |
60.00 |
65.00 |
32.00 |
32.00 |
38.00 |
38.00 |
22.00 |
26.00 |
XGE38S-1-1/2"NPT |
GE38S-1-1/2"NPT |
315 |
320 |
