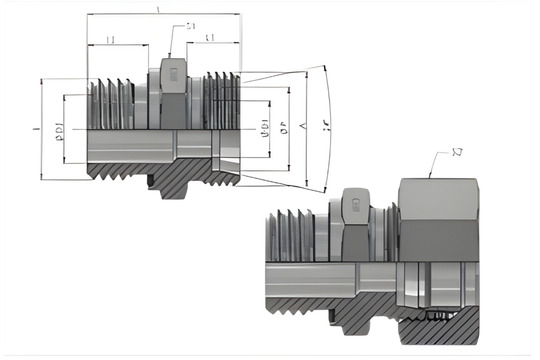

GE-M-ED Male stud connector Male metric thread ED (ISO 9974) / 24° cone end
L SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD1 DRILL |
ØD2 DRILL |
ØP |
L1 |
L2 |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 6 |
M12X1.5-6g |
M12X1.5-6g |
17.00 |
14.00 |
30.00 |
4.00 |
4.00 |
6.00 |
10.00 |
12.00 |
XGE06L-M12X1.5ED |
GE06L-M12X1.5ED |
400 |
330 |
| 6 |
M12X1.5-6g |
M16X1.5-6g |
22.00 |
14.00 |
32.00 |
4.00 |
7.50 |
6.00 |
10.00 |
12.00 |
XGE06L-M16X1.5ED |
GE06L-M16X1.5ED |
420 |
330 |
| 8 |
M14X1.5-6g |
M10X1.0-6g |
17.00 |
17.00 |
25.00 |
6.00 |
4.00 |
8.00 |
10.00 |
8.00 |
XGE08L-M10X1.0ED |
GE08L-M10X1.0ED |
400 |
330 |
| 8 |
M14X1.5-6g |
M14X1.5-6g |
19.00 |
17.00 |
29.00 |
6.00 |
6.00 |
8.00 |
10.00 |
12.00 |
XGE08L-M14X1.5ED |
GE08L-M14X1.5ED |
400 |
330 |
| 8 |
M14X1.5-6g |
M16X1.5-6g |
22.00 |
17.00 |
30.00 |
6.00 |
7.50 |
8.00 |
10.00 |
12.00 |
XGE08L-M16X1.5ED |
GE08L-M16X1.5ED |
400 |
330 |
| 8 |
M14X1.5-6g |
M18X1.5-6g |
24.00 |
17.00 |
30.00 |
6.00 |
11.00 |
8.00 |
10.00 |
12.00 |
XGE08L-M18X1.5ED |
GE08L-M18X1.5ED |
400 |
330 |
| 8 |
M14X1.5-6g |
M26X1.5-6g |
32.00 |
17.00 |
36.00 |
6.00 |
14.00 |
8.00 |
10.00 |
16.00 |
XGE08L-M26X1.5ED |
GE08L-M26X1.5ED |
400 |
330 |
| 10 |
M16X1.5-6g |
M10X1.0-6g |
19.00 |
19.00 |
26.00 |
4.00 |
4.00 |
10.00 |
11.00 |
8.00 |
XGE10L-M10X1.0ED |
GE10L-M10X1.0ED |
400 |
330 |
| 10 |
M16X1.5-6g |
M12X1.5-6g |
17.00 |
19.00 |
30.00 |
8.00 |
6.00 |
10.00 |
11.00 |
12.00 |
XGE10L-M12X1.5ED |
GE10L-M12X1.5ED |
400 |
330 |
| 10 |
M16X1.5-6g |
M16X1.5-6g |
22.00 |
19.00 |
31.50 |
8.00 |
8.00 |
10.00 |
11.00 |
12.00 |
XGE10L-M16X1.5ED |
GE10L-M16X1.5ED |
420 |
330 |
| 10 |
M16X1.5-6g |
M18X1.5-6g |
24.00 |
19.00 |
30.00 |
8.00 |
8.00 |
10.00 |
11.00 |
12.00 |
XGE10L-M18X1.5ED |
GE10L-M18X1.5ED |
400 |
330 |
| 10 |
M16X1.5-6g |
M22X1.5-6g |
27.00 |
19.00 |
35.00 |
7.00 |
14.00 |
10.00 |
11.00 |
14.00 |
XGE10L-M22X1.5ED |
GE10L-M22X1.5ED |
400 |
330 |
| 12 |
M18X1.5-6g |
M10X1.0-6g |
22.00 |
22.00 |
26.50 |
10.00 |
4.00 |
12.00 |
11.00 |
8.00 |
XGE12L-M10X1.0ED |
GE12L-M10X1.0ED |
400 |
330 |
| 12 |
M18X1.5-6g |
M12X1.5-6g |
19.00 |
22.00 |
31.50 |
10.00 |
6.00 |
12.00 |
11.00 |
12.00 |
XGE12L-M12X1.5ED |
GE12L-M12X1.5ED |
400 |
330 |
| 12 |
M18X1.5-6g |
M14X1.5-6g |
19.00 |
22.00 |
31.50 |
9.00 |
6.00 |
12.00 |
11.00 |
12.00 |
XGE12L-M14X1.5ED |
GE12L-M14X1.5ED |
400 |
330 |
| 12 |
M18X1.5-6g |
M18X1.5-6g |
24.00 |
22.00 |
31.50 |
10.00 |
11.00 |
12.00 |
11.00 |
12.00 |
XGE12L-M18X1.5ED |
GE12L-M18X1.5ED |
400 |
330 |
| 12 |
M18X1.5-6g |
M22X1.5-6g |
27.00 |
22.00 |
35.00 |
10.00 |
10.00 |
12.00 |
11.00 |
14.00 |
XGE12L-M22X1.5ED |
GE12L-M22X1.5ED |
400 |
330 |
| 15 |
M22X1.5-6g |
M14X1.5-6g |
24.00 |
27.00 |
32.50 |
11.00 |
7.00 |
15.00 |
12.00 |
12.00 |
XGE15L-M14X1.5ED |
GE15L-M14X1.5ED |
400 |
330 |
| 15 |
M22X1.5-6g |
M16X1.5-6g |
24.00 |
27.00 |
32.50 |
9.00 |
9.00 |
15.00 |
12.00 |
12.00 |
XGE15L-M16X1.5ED |
GE15L-M16X1.5ED |
400 |
330 |
| 15 |
M22X1.5-6g |
M22X1.5-6g |
27.00 |
27.00 |
36.00 |
12.00 |
12.00 |
15.00 |
12.00 |
14.00 |
XGE15L-M22X1.5ED |
GE15L-M22X1.5ED |
400 |
330 |
| 15 |
M22X1.5-6g |
M27X1.5-6g |
32.00 |
27.00 |
38.00 |
12.00 |
12.00 |
15.00 |
12.00 |
16.00 |
XGE15L-M27X1.5ED |
GE15L-M27X1.5ED |
400 |
330 |
| 18 |
M26X1.5-6g |
M16X1.5-6g |
27.00 |
32.00 |
33.00 |
15.00 |
9.00 |
18.00 |
12.00 |
12.00 |
XGE18L-M16X1.5ED |
GE18L-M16X1.5ED |
400 |
330 |
| 18 |
M26X1.5-6g |
M18X1.5-6g |
27.00 |
32.00 |
33.50 |
15.00 |
11.00 |
18.00 |
12.00 |
14.00 |
XGE18L-M18X1.5ED |
GE18L-M18X1.5ED |
400 |
330 |
| 18 |
M26X1.5-6g |
M26X1.5-6g |
32.00 |
32.00 |
38.00 |
14.00 |
14.00 |
18.00 |
12.00 |
16.00 |
XGE18L-M26X1.5ED |
GE18L-M26X1.5ED |
400 |
330 |
| 22 |
M30X2.0-6g |
M22X1.5-6g |
32.00 |
36.00 |
38.00 |
14.00 |
14.00 |
22.00 |
14.00 |
14.00 |
XGE22L-M22X1.5ED |
GE22L-M22X1.5ED |
250 |
160 |
| 22 |
M30X2.0-6g |
M33X2.0-6g |
41.00 |
36.00 |
42.00 |
18.00 |
20.00 |
22.00 |
14.00 |
18.00 |
XGE22L-M33X2.0ED |
GE22L-M33X2.0ED |
250 |
160 |
| 28 |
M36X2.0-6g |
M26X1.5-6g |
41.00 |
41.00 |
41.00 |
23.00 |
14.00 |
28.00 |
14.00 |
16.00 |
XGE28L-M26X1.5ED |
GE28L-M26X1.5ED |
250 |
160 |
S SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD1 DRILL |
ØD2 DRILL |
ØP |
L1 |
L2 |
Body Part Number |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 8 |
M16X1.5-6g |
M10X1.0-6g |
19.00 |
19.00 |
30.00 |
4.00 |
4.00 |
8.00 |
12.00 |
8.00 |
XGE08S-M10X1.0ED |
GE08S-M10X1.0ED |
800 |
600 |
| 12 |
M20X1.5-6g |
M14X1.5-6g |
22.00 |
24.00 |
36.00 |
5.00 |
5.00 |
12.00 |
12.00 |
12.00 |
XGE12S-M14X1.5ED |
GE12S-M14X1.5ED |
630 |
410 |
| 12 |
M20X1.5-6g |
M22X1.5-6g |
27.00 |
24.00 |
39.00 |
8.00 |
8.00 |
12.00 |
12.00 |
14.00 |
XGE12S-M22X1.5ED |
GE12S-M22X1.5ED |
630 |
410 |
| 16 |
M24X1.5-6g |
M18X1.5-6g |
27.00 |
30.00 |
38.50 |
8.00 |
8.00 |
16.00 |
14.00 |
12.00 |
XGE16S-M18X1.5ED |
GE16S-M18X1.5ED |
630 |
410 |
| 16 |
M24X1.5-6g |
M26X1.5-6g |
32.00 |
30.00 |
43.00 |
12.00 |
12.00 |
16.00 |
14.00 |
16.00 |
XGE16S-M26X1.5ED |
GE16S-M26X1.5ED |
630 |
410 |
| 20 |
M30X2.0-6g |
M22X1.5-6g |
32.00 |
36.00 |
45.00 |
16.00 |
14.00 |
20.00 |
16.00 |
14.00 |
XGE20S-M22X1.5ED |
GE20S-M22X1.5ED |
420 |
410 |
| 25 |
M36X2.0-6g |
M26X1.5-6g |
41.00 |
46.00 |
51.00 |
20.00 |
16.00 |
25.00 |
18.00 |
16.00 |
XGE25S-M26X1.5ED |
GE25S-M26X1.5ED |
420 |
410 |
