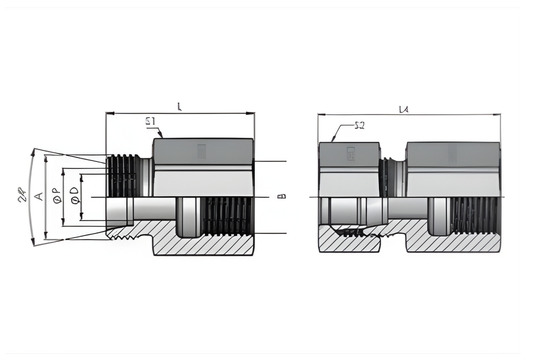

GAI-M-Female metric thread

GAI-M-Female metric thread

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L ØD DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M12X1.5-6g M10X1.0-6H 14.00 14.00 26.50 4.00 6.00 34.00 XGAI06LM GAI06LM 315 330
8 M14X1.5-6g M12X1.5-6H 17.00 17.00 31.00 6.00 8.00 34.00 XGAI08LM GAI08LM 315 330
10 M16X1.5-6g M14X1.5-6H 19.00 19.00 32.00 6.00 10.00 40.00 XGAI10LM GAI10LM 315 330
12 M18X1.5-6g M16X1.5-6H 22.00 22.00 33.00 9.00 12.00 41.00 XGAI12LM GAI12LM 315 330
15 M22X1.5-6g M18X1.5-6H 24.00 27.00 35.00 11.00 15.00 43.00 XGAI15LM GAI15LM 315 330
18 M26X1.5-6g M22X1.5-6H 27.00 32.00 37.00 14.00 18.00 46.00 XGAI18LM GAI18LM 315 330
22 M30X2.0-6g M26X1.5-6H 30.00 36.00 42.00 18.00 22.00 51.00 XGAI22LM GAI22LM 160 160
28 M36X2.0-6g M33X2.0-6H 41.00 41.00 45.00 23.00 28.00 54.00 XGAI28LM GAI28LM 160 160
35 M45X2.0-6g M42X2.0-6H 50.00 50.00 51.00 30.00 35.00 62.00 XGAI35LM GAI35LM 160 160
42 M52X2.0-6g M48X2.0-6H 55.00 60.00 53.00 36.00 42.00 65.00 XGAI42LM GAI42LM 160 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L ØD DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
6 M14X1.5-6g M12X1.5-6H 17.00 17.00 33.00 4.00 6.00 41.00 XGAI06SM GAI06SM 400 400
8 M16X1.5-6g M14X1.5-6H 19.00 19.00 33.00 5.00 8.00 41.00 XGAI08SM GAI08SM 400 400
10 M18X1.5-6g M16X1.5-6H 22.00 22.00 34.00 7.00 10.00 43.00 XGAI10SM GAI10SM 400 400
12 M20X1.5-6g M18X1.5-6H 24.00 24.00 35.00 8.00 12.00 44.00 XGAI12SM GAI12SM 400 400
16 M24X1.5-6g M22X1.5-6H 30.00 30.00 39.00 12.00 16.00 49.00 XGAI16SM GAI16SM 400 400
20 M30X2.0-6g M27X2.0-6H 36.00 36.00 45.00 16.00 20.00 56.00 XGAI20SM GAI20SM 315 315
25 M36X2.0-6g M33X2.0-6H 41.00 46.00 49.00 20.00 25.00 61.00 XGAI25SM GAI25SM 315 315
30 M42X2.0-6g M42X2.0-6H 50.00 50.00 55.00 25.00 30.00 68.00 XGAI30SM GAI30SM 315 315
38 M52X2.0-6g M48X2.0-6H 55.00 60.00 59.00 32.00 38.00 74.00 XGAI38SM GAI38SM 250 250
