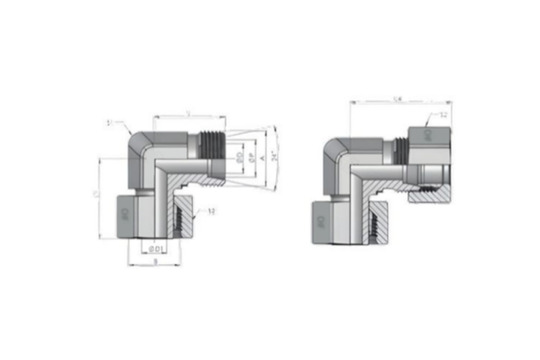

EW-Swivel nut elbow 24 cone end

EW-Swivel nut elbow 24 cone end

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex S3 Hex L1 L2 ØD1 DRILL ØD2 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
8 M14X1.5-6g M14X1.5-6H 14.00 17.00 17.00 21.00 27.00 6.00 4.00 8.00 29.00 XEW08L EW08L 500 330
10 M16X1.5-6g M16X1.5-6H 14.00 19.00 19.00 22.00 28.50 8.00 6.00 10.00 30.00 XEW10L EW10L 500 330
12 M18X1.5-6g M18X1.5-6H 17.00 22.00 22.00 24.00 29.00 10.00 8.00 12.00 32.00 XEW12L EW12L 400 330
15 M22X1.5-6g M22X1.5-6H 19.00 27.00 27.00 28.00 32.00 12.00 10.00 15.00 36.00 XEW15L EW15L 400 330
18 M26X1.5-6g M26X1.5-6H 24.00 32.00 32.00 31.00 35.00 15.00 14.00 18.00 40.00 XEW18L EW18L 400 330
22 M30X2.0-6g M30X2.0-6H 27.00 36.00 36.00 35.00 38.00 19.00 18.00 22.00 44.00 XEW22L EW22L 250 160
28 M36X2.0-6g M36X2.0-6H 36.00 41.00 41.00 38.00 41.50 24.00 22.00 28.00 47.00 XEW28L EW28L 250 160
35 M45X2.0-6g M45X2.0-6H 41.00 50.00 50.00 45.00 51.00 30.00 28.00 35.00 56.00 XEW35L EW35L 250 160
42 M52X2.0-6g M52X2.0-6H 50.00 60.00 60.00 51.00 56.00 36.00 34.00 42.00 63.00 XEW42L EW42L 250 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex S3 Hex L1 L2 ØD1 DRILL ØD2 DRILL ØP L4 Body Part Number Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
8 M16X1.5-6g M16X1.5-6H 14.00 19.00 19.00 24.00 27.00 5.00 4.00 8.00 32.00 XEW08S EW08S 800 630
10 M18X1.5-6g M18X1.5-6H 17.00 22.00 22.00 25.00 29.50 7.00 6.00 10.00 34.00 XEW10S EW10S 800 630
12 M20X1.5-6g M20X1.5-6H 19.00 24.00 24.00 29.00 30.50 8.00 8.00 12.00 38.00 XEW12S EW12S 630 630
16 M24X1.5-6g M24X1.5-6H 24.00 30.00 30.00 33.00 36.00 12.00 11.00 16.00 43.00 XEW16S EW16S 630 410
20 M30X2.0-6g M30X2.0-6H 27.00 36.00 36.00 37.00 44.00 16.00 14.00 20.00 48.00 XEW20S EW20S 420 410
25 M36X2.0-6g M36X2.0-6H 36.00 46.00 46.00 42.00 49.50 20.00 18.00 25.00 54.00 XEW25S EW25S 420 410
30 M42X2.0-6g M42X2.0-6H 41.00 50.00 50.00 49.00 55.00 25.00 23.00 30.00 62.00 XEW30S EW30S 420 410
38 M52X2.0-6g M52X2.0-6H 50.00 60.00 60.00 57.00 63.00 32.00 30.00 38.00 72.00 XEW38S EW38S 420 320
