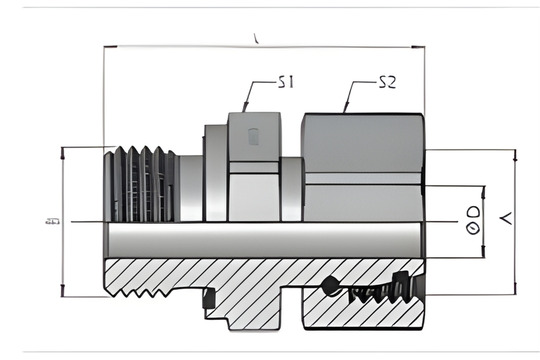

EGE-R-Swivel Connector Male BSPP thread
L SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD DRILL |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 8 |
M14X1.5-6H |
G1/4"-19BSPP-A |
19.00 |
17.00 |
39.50 |
4.00 |
EGE08LRED |
500 |
330 |
| 10 |
M16X1.5-6H |
G1/4"-19BSPP-A |
19.00 |
19.00 |
38.00 |
6.00 |
EGE10LRED |
500 |
330 |
| 12 |
M18X1.5-6H |
G3/8"-19BSPP-A |
22.00 |
22.00 |
44.50 |
8.00 |
EGE12LRED |
400 |
330 |
| 15 |
M22X1.5-6H |
G1/2"-14BSPP-A |
27.00 |
27.00 |
44.50 |
10.00 |
EGE15LRED |
400 |
330 |
| 18 |
M26X1.5-6H |
G1/2"-14BSPP-A |
27.00 |
32.00 |
43.50 |
13.00 |
EGE18LRED |
400 |
330 |
| 22 |
M30X2.0-6H |
G3/4"-14BSPP-A |
32.00 |
36.00 |
46.50 |
17.00 |
EGE22LRED |
250 |
160 |
| 28 |
M36X2.0-6H |
G1"-11BSPP-A |
41.00 |
41.00 |
51.00 |
22.00 |
EGE28LRED |
250 |
160 |
| 35 |
M45X2.0-6H |
G1-1/4"-11BSPP-A |
50.00 |
50.00 |
59.00 |
28.00 |
EGE35LRED |
250 |
160 |
| 42 |
M52X2.0-6H |
G1-1/2"-11BSPP-A |
55.00 |
60.00 |
64.50 |
34.00 |
EGE42LRED |
250 |
160 |
S SERIES
| Tube O.D. |
A THREAD |
B THREAD |
S1 Hex |
S2 Hex |
L |
ØD DRILL |
Assembly Part Number |
Working pressure in Bar for CS |
Working pressure in Bar for SS |
| 8 |
M16X1.5-6H |
G1/4"-19BSPP-A |
19.00 |
19.00 |
39.50 |
4.00 |
EGE08SRED |
800 |
630 |
| 10 |
M18X1.5-6H |
G3/8"-19BSPP-A |
22.00 |
22.00 |
42.00 |
6.00 |
EGE10SRED |
800 |
630 |
| 12 |
M20X1.5-6H |
G3/8"-19BSPP-A |
22.00 |
24.00 |
44.00 |
8.00 |
EGE12SRED |
630 |
630 |
| 16 |
M24X1.5-6H |
G1/2"-14BSPP-A |
27.00 |
30.00 |
48.00 |
11.00 |
EGE16SRED |
630 |
410 |
| 20 |
M30X2.0-6H |
G3/4"-14BSPP-A |
32.00 |
36.00 |
55.50 |
14.00 |
EGE20SRED |
420 |
410 |
| 25 |
M36X2.0-6H |
G1"-11BSPP-A |
41.00 |
46.00 |
60.80 |
18.00 |
EGE25SRED |
420 |
410 |
| 30 |
M42X2.0-6H |
G1-1/4"-11BSPP-A |
50.00 |
50.00 |
64.50 |
23.00 |
EGE30SRED |
420 |
410 |
| 38 |
M52X2.0-6H |
G1-1/2"-11BSPP-A |
55.00 |
60.00 |
73.00 |
30.00 |
EGE38SRED |
420 |
320 |
