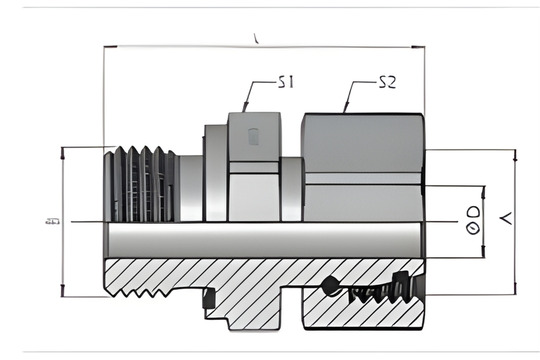

EGE-M-Swivel Connector Male metric thread

EGE-M-Swivel Connector Male metric thread

L SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L ØD1 DRILL Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
8 M14X1.5-6H M12X1.5-6g 17 17 38.5 4 EGE08LMED 500 330
10 M16X1.5-6H M14X1.5-6g 19 19 38.5 6 EGE10LMED 500 330
12 M18X1.5-6H M16X1.5-6g 22 22 41 7.5 EGE12LMED 400 330
15 M22X1.5-6H M18X1.5-6g 24 27 42.5 10 EGE15LMED 400 330
18 M26X1.5-6H M22X1.5-6g 27 32 44.2 14 EGE18LMED 400 330
22 M30X2.0-6H M26X1.5-6g 32 36 47.2 18 EGE22LMED 250 160
28 M36X2.0-6H M33X2.0-6g 41 41 52 22 EGE28LMED 250 160
35 M45X2.0-6H M42X2.0-6g 50 50 61 28 EGE35LMED 250 160
42 M52X2.0-6H M48X2.0-6g 50 60 66.3 36 EGE42LMED 250 160

S SERIES

Tube O.D. A THREAD B THREAD S1 Hex S2 Hex L ØD1 DRILL Assembly Part Number Working pressure in Bar for CS Working pressure in Bar for SS
8 M16X1.5-6H M14X1.5-6g 19 19 40.2 4 EGE08SMED 800 630
10 M18X1.5-6H M16X1.5-6g 22 22 42.5 6 EGE10SMED 800 630
12 M20X1.5-6H M18X1.5-6g 24 24 44.7 8 EGE12SMED 630 630
16 M24X1.5-6H M22X1.5-6g 27 30 50 10 EGE16SMED 630 410
20 M30X2.0-6H M27X2.0-6g 32 36 58 14 EGE20SMED 420 410
25 M36X2.0-6H M33X2.0-6g 41 46 64.5 17 EGE25SMED 420 410
30 M42X2.0-6H M42X2.0-6g 50 50 69.5 22 EGE30SMED 420 410
38 M52X2.0-6H M48X2.0-6g 55 60 78.5 28 EGE38SMED 420 320
