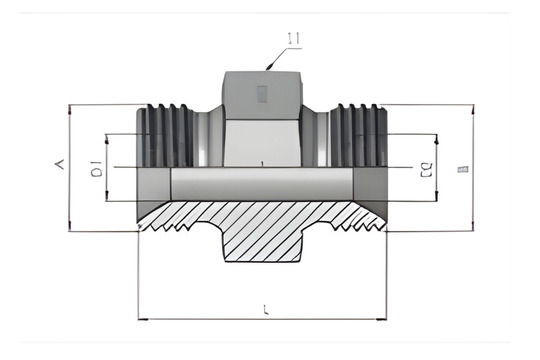

BSPP NIPPLE
HT9022 Series
| A THREAD |
B THREAD2 |
ØD1 DRILL |
ØD2 DRILL2 |
L LENGTH |
S1 Hex |
Part Number |
Working pressure in Bar |
| 1/8"-28BSPP |
1/8"-28BSPP |
3.50 |
3.50 |
21.00 |
14.00 |
HT9022-02-02 |
350 |
| 1/4"-19BSPP |
1/4"-19BSPP |
4.70 |
4.70 |
30.00 |
19.00 |
HT9022-04-04 |
350 |
| 3/8"-19BSPP |
3/8"-19BSPP |
7.90 |
7.90 |
35.00 |
22.00 |
HT9022-06-06 |
350 |
| 1/2"-14BSPP |
1/2"-14BSPP |
11.10 |
11.10 |
42.00 |
27.00 |
HT9022-08-08 |
200 |
| 5/8"-14BSPP |
5/8"-14BSPP |
14.30 |
14.30 |
43.00 |
30.00 |
HT9022-10-10 |
200 |
| 3/4"-14BSPP |
3/4"-14BSPP |
16.70 |
16.70 |
47.00 |
32.00 |
HT9022-12-12 |
200 |
| 1"-11BSPP |
1"-11BSPP |
22.20 |
22.20 |
53.00 |
41.00 |
HT9022-16-16 |
120 |
| 1-1/4"-11BSPP |
1-1/4"-11BSPP |
28.60 |
28.60 |
58.00 |
50.00 |
HT9022-20-20 |
105 |
| 1-1/2"-11BSPP |
1-1/2"-11BSPP |
33.30 |
33.30 |
62.00 |
55.00 |
HT9022-24-24 |
105 |
| 2"-11BSPP |
2"-11BSPP |
46.00 |
46.00 |
70.00 |
70.00 |
HT9022-32-32 |
70 |
| 1/4"-19BSPP |
1/8"-28BSPP |
4.70 |
3.50 |
28.00 |
19.00 |
HT9022-04-02 |
350 |
| 3/8"-19BSPP |
1/4"-19BSPP |
7.90 |
4.70 |
33.00 |
22.00 |
HT9022-06-04 |
350 |
| 1/2"-14BSPP |
1/4"-19BSPP |
11.10 |
4.70 |
37.00 |
27.00 |
HT9022-08-04 |
200 |
| 1/2"-14BSPP |
3/8"-19BSPP |
11.10 |
7.90 |
38.00 |
27.00 |
HT9022-08-06 |
200 |
| 3/4"-14BSPP |
3/8"-19BSPP |
16.70 |
7.90 |
41.00 |
32.00 |
HT9022-12-06 |
200 |
| 3/4"-14BSPP |
1/2"-14BSPP |
16.70 |
11.10 |
43.00 |
32.00 |
HT9022-12-08 |
200 |
| 1"-11BSPP |
3/8"-19BSPP |
22.20 |
7.90 |
45.00 |
41.00 |
HT9022-16-06 |
120 |
| 1"-11BSPP |
1/2"-14BSPP |
22.20 |
11.10 |
47.00 |
41.00 |
HT9022-16-08 |
120 |
| 1"-11BSPP |
3/4"-14BSPP |
22.20 |
16.70 |
49.00 |
41.00 |
HT9022-16-12 |
120 |
