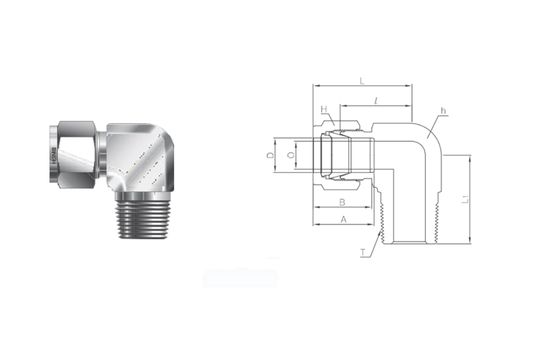

Male NPT Elbow
CONNECTS FRACTIONAL TUBE TO FEMALE NPT THREAD
| Part No. |
Tube O.D. (in) |
Tube O.D. (mm) |
NPT (in) |
D (mm) |
O Min (in) |
O Min (mm) |
h (in) |
h (mm) |
H (mm) |
A (mm) |
B (mm) |
l (mm) |
L (mm) |
L1 (mm) |
| ALM1-1N |
1/16 |
1.59 |
1/16 |
1.27 |
7/16 |
11.11 |
5/16 |
7.93 |
8.63 |
10.92 |
15.24 |
19.05 |
17.78 |
| ALM1-2N |
1/16 |
1.59 |
1/8 |
1.27 |
7/16 |
11.11 |
5/16 |
7.93 |
8.63 |
10.92 |
15.24 |
19.05 |
17.78 |
| ALM2-2N |
1/8 |
3.17 |
1/8 |
2.28 |
1/2 |
12.70 |
7/16 |
11.11 |
12.70 |
15.24 |
18.30 |
24.91 |
18.90 |
| ALM2-4N |
1/8 |
3.17 |
1/4 |
2.28 |
1/2 |
12.70 |
7/16 |
11.11 |
12.70 |
15.24 |
18.30 |
24.91 |
23.26 |
| ALM3-2N |
3/16 |
4.76 |
1/8 |
3.04 |
1/2 |
12.70 |
1/2 |
12.70 |
13.71 |
16.00 |
18.79 |
25.40 |
18.79 |
| ALM3-4N |
3/16 |
4.76 |
1/4 |
3.04 |
1/2 |
12.70 |
1/2 |
12.70 |
13.71 |
16.00 |
18.79 |
25.40 |
23.36 |
CONNECTS METRIC TUBE TO FEMALE NPT THREAD
| Part No. |
Tube O.D. (mm) |
NPT (in) |
D (mm) |
O Min (mm) |
h (mm) |
H (mm) |
A (mm) |
B (mm) |
l (mm) |
L (mm) |
L1 (mm) |
| ALM3M-1N |
3 |
1/16 |
2.4 |
11.1 |
12 |
12.9 |
15.3 |
17.0 |
23.6 |
17.8 |
| ALM3M-2N |
3 |
1/8 |
2.4 |
12.7 |
12 |
12.9 |
15.3 |
17.0 |
23.6 |
17.8 |
| ALM3M-4N |
3 |
1/4 |
2.4 |
12.7 |
12 |
12.9 |
15.3 |
18.0 |
24.6 |
23.4 |
| ALM4M-2N |
4 |
1/8 |
2.4 |
12.7 |
12 |
13.7 |
16.1 |
18.8 |
25.4 |
18.8 |
