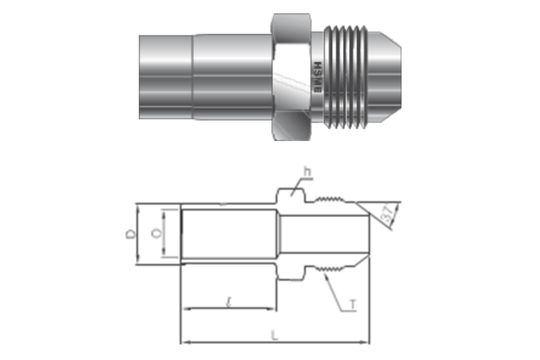

Male AN Tube Adapter

Part No.	Tube O.D. (in)	Tube O.D. (mm)	AN Flare Size (in)	AN Flare Size (mm)	Straight Thread (in)	D (mm)	Width Across Flat (in)	Width Across Flat (mm)	l (mm)	L (mm)	h (mm)
AMAA4-4	1/4	6.35	1/4	6.35	7/16-20	4.57	1/2	12.70	15.75	37.1	-
AMAA6-6	3/8	9.52	3/8	9.52	9/16-18	7.11	5/8	15.87	17.5	39.63	-
AMAA8-6	1/2	12.70	3/8	9.52	9/16-18	7.11	5/8	15.87	23.1	45.7	-
AMAA8-8	1/2	12.70	1/2	12.70	3/4-16	9.9	13/16	20.64	23.1	48.52	-
AMAA8-10	1/2	12.70	5/8	15.87	7/8-14	9.9	15/16	23.81	23.1	52.0	-
AMAA10-10	5/8	15.87	5/8	15.87	7/8-14	12.3	15/16	23.81	27.68	56.13	-
AMAA12-12	3/4	19.05	3/4	19.05	1-1/16-12	14.98	1-1/8	28.58	24.7	56.13	-
AMAA16-16	1	25.40	1	25.40	1-5/16-12	20.06	1-3/8	34.92	31.7	65.33	-
