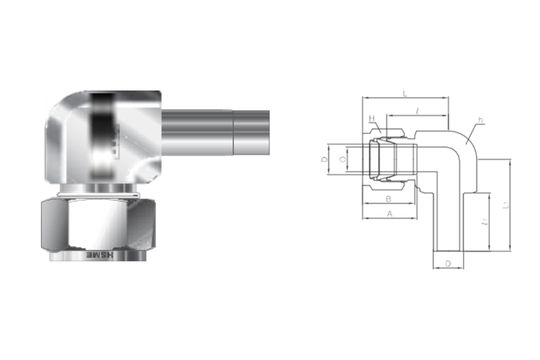

Elbow Tube Adapter
| Part No. |
Tube O.D. |
D O Min (mm) |
Width Across Flat |
A (mm) |
B (mm) |
l (mm) |
l1 (mm) |
L (mm) |
L1 (mm) |
h (mm) |
H (mm) |
| in |
mm |
in |
mm |
| ALA-4 |
1/4 |
6.35 |
4.8 |
1/2 |
12.70 |
14.28 |
15.24 |
17.78 |
19.55 |
15.75 |
27.0 |
25.00 |
| ALA-6 |
3/8 |
9.52 |
7.10 |
5/8 |
15.87 |
17.46 |
16.76 |
19.30 |
23.11 |
17.50 |
31.5 |
29.10 |
| ALA-8 |
1/2 |
12.70 |
10.41 |
13/16 |
20.63 |
22.22 |
22.86 |
21.84 |
25.90 |
23.10 |
36.0 |
37.3 |
| ALA-12 |
3/4 |
19.05 |
16.00 |
1-1/16 |
26.98 |
28.57 |
24.38 |
21.84 |
29.71 |
24.70 |
38.8 |
42.6 |
| ALA-16 |
1 |
25.40 |
22.30 |
1-3/8 |
34.92 |
38.10 |
31.24 |
26.41 |
46.83 |
31.70 |
42.6 |
54.40 |
| Part No. |
Tube O.D. (mm) |
D O Min (mm) |
Width Across Flat (mm) |
A (mm) |
B (mm) |
l (mm) |
l1 (mm) |
L (mm) |
L1 (mm) |
h (mm) |
H (mm) |
| ALA-6M |
6 |
4.6 |
12.7 |
14 |
15.3 |
17.7 |
19.6 |
15.7 |
27.0 |
25.0 |
| ALA-8M |
8 |
6.4 |
15.8 |
16 |
16.2 |
18.6 |
21.3 |
16.8 |
28.8 |
27.05 |
| ALA-10M |
10 |
7.7 |
17.4 |
19 |
17.2 |
19.5 |
23.9 |
17.5 |
31.5 |
30.0 |
| ALA-12M |
12 |
9.1 |
20.6 |
22 |
22.8 |
22.0 |
25.9 |
23.1 |
36.0 |
37.3 |
| ALA-14M |
14 |
11.1 |
25.4 |
25 |
24.4 |
22.0 |
28.7 |
24.6 |
38.8 |
41.5 |
| ALA-15M |
15 |
11.9 |
25.4 |
25 |
24.4 |
22.0 |
28.7 |
24.65 |
38.8 |
41.55 |
| ALA-16M |
16 |
12.7 |
25.4 |
25 |
24.4 |
22.0 |
28.7 |
24.6 |
38.8 |
41.5 |
| ALA-18M |
18 |
13.9 |
26.9 |
30 |
24.4 |
22.0 |
29.7 |
24.6 |
39.8 |
42.5 |
| ALA-20M |
20 |
15.1 |
31.8 |
32 |
26.0 |
22.0 |
32.5 |
26.2 |
42.6 |
47.0 |
| ALA-22M |
22 |
18.3 |
31.8 |
32 |
26.0 |
22.0 |
32.5 |
26.6 |
42.6 |
47.15 |
| ALA-25M |
25 |
19.8 |
34.9 |
38 |
31.3 |
26.5 |
36.8 |
31.7 |
49.1 |
55.2 |
| ALA-28M |
28 |
21.8 |
41.0 |
46 |
36.6 |
36.6 |
43.2 |
37.5 |
64.0 |
64.9 |
